Geminiが4になってテクニカルな作画がマッハの速度かつハイレベルな精密図になっていること

»

Geminiが4になっています。その本領はこれから触って確かめるところですが。

セミナーの資料に貼り付けるための図を作っていて、あまりにその作画性能が、何段階もワープしたようなので、ご報告します。

以下はAIデータセンターの基礎編にあたる部分の説明内容を図にしたものです。テキストのレポートをGeminiに読ませ、いい感じで図にすべき部分を特定してもらい、Geminiで作画するためのプロンプトも作ってもらいました。

レベル感をご覧ください。

(図の中身が英語である点については、「記述はすべて日本語にして下さい」と入れれば、修正プロンプトと修正画像が瞬時に出てきます。)

AIデータセンターのセミナー用に、この種の図を何度か作って来ましたが、このレベル感は初めてです。しかも超速!体感速度は「秒でできる」感じです。

作画のやり方は以下の通り。Geminiに読ませるレポートが正確であれば、作画プロンプトもいいものができます。

・最初に技術的に正確なテキストのレポートを作成する。(自分が使いやすいAIでOK。できるだけ最新、最強のAIモデルを使うことをお勧めします。)

・そのレポート(PDF)をGeminiに読ませて、作画が必要な部分を指定し、図にふさわしいプロンプトをGeminiに作成させる。自分の意図(画風など)を入れてもよい。

・そのプロンプトをGeminiに入れて「画像を作る」ボタンを押す。

です。

【プロンプトその1とできあがった画像】

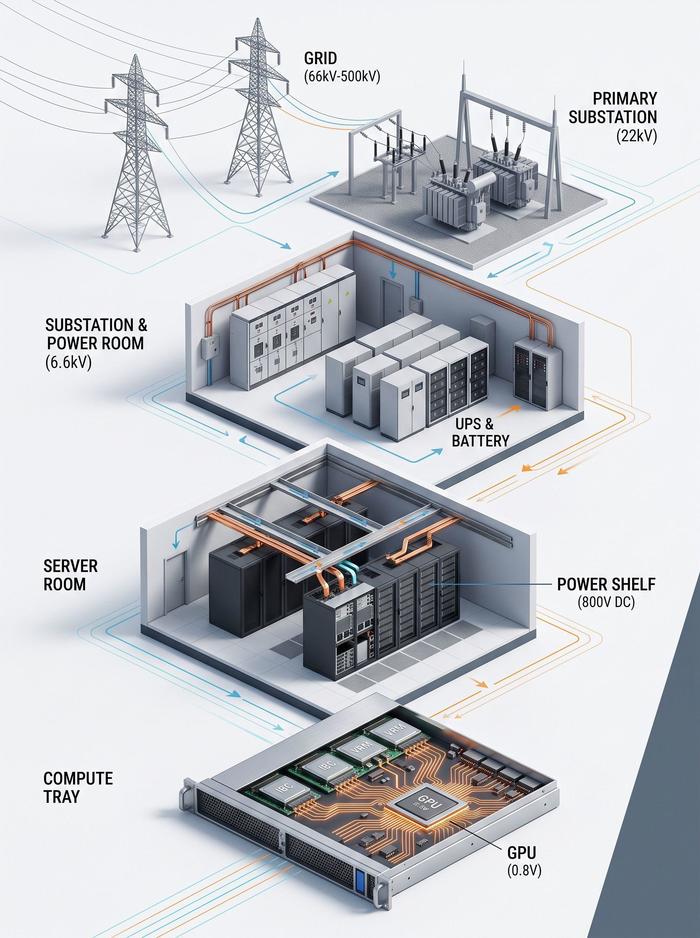

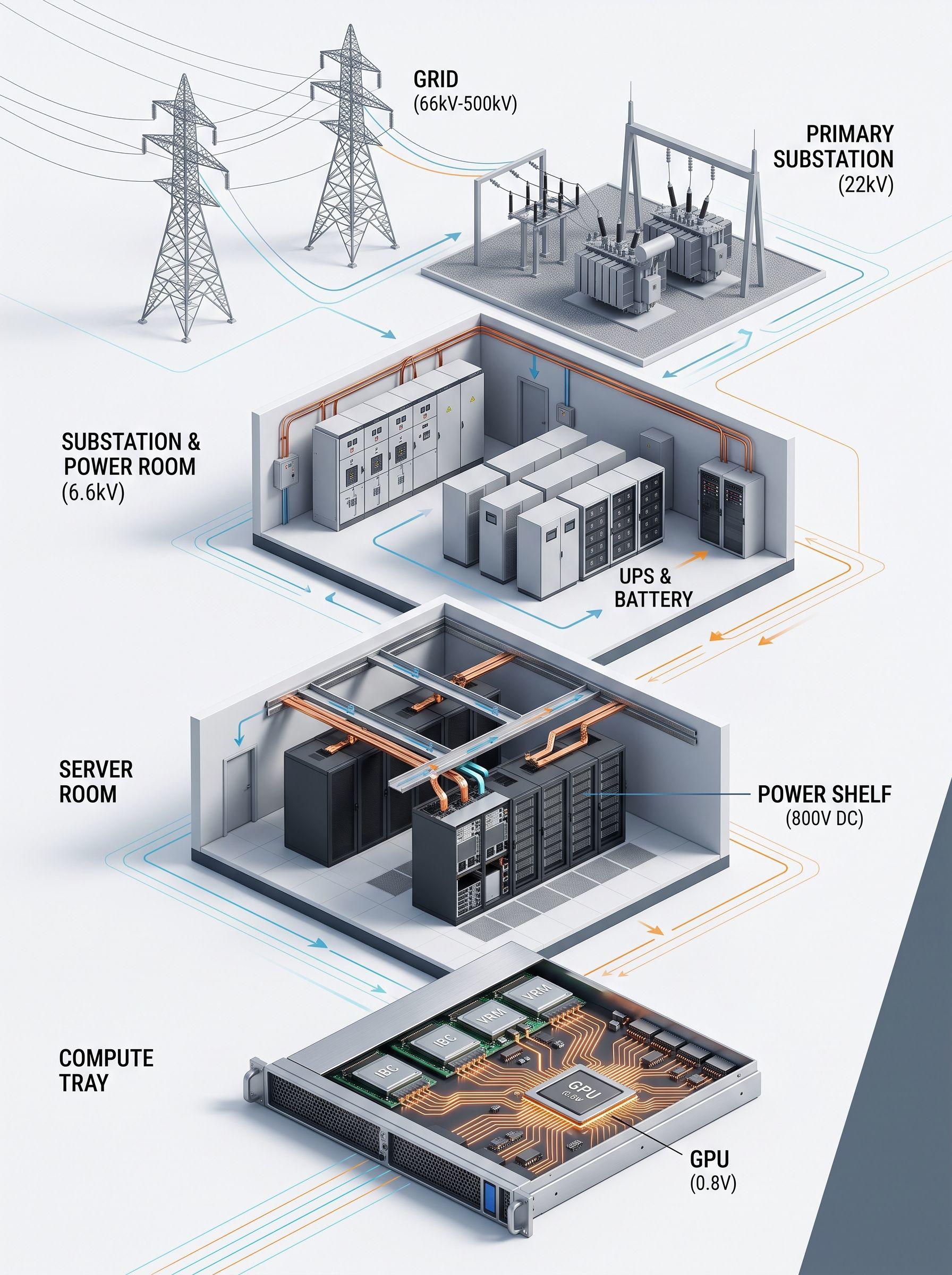

図1:「Grid-to-Chip」電力供給チェーンと電圧変換カスケード

1. 図表の狙いと必要性

第1章で解説した「発電所からGPUダイに至るまでの6〜7段階の電圧降圧」と「ジュール熱損失を低減するための800V DC化」は、文章や数値だけでは受講者が全体像を捉えにくい部分です。広域送電網の特別高圧からチップ表面の0.8Vに至る物理的な階層構造を1枚のアイソメトリック(等角投影)図として可視化することで、受講者は「なぜ変電所や受配電設備がAIファクトリーのボトルネックになるのか」を直感的に把握できます。

2. 描画すべき構成要素

  • 最上段:特別高圧送電線(66kV〜500kV)および敷地内主変電所(大型変圧器)

  • 中段:中圧スイッチギア(6.6kV〜22kV)、大型UPS・蓄電池盤、低圧変圧器、ラック天井のバスダクト

  • 下段:サーバーラック内のパワーシェルフ(54V/800V DC変換)、サーバーブレード内のVRM、そして最終端のGPUシリコンダイ(0.8V大電流)

  • 視覚効果:エネルギーが上から下へ流れる光のライン、各ステージの電圧表記と機器のリアルな立体感

Gemini作画用プロンプト(アスペクト比 3:4)

A highly detailed, professional 3D isometric technical infographic showing the "Grid-to-Chip" power delivery chain for an AI data center, aspect ratio 3:4, vertical orientation. Modern clean corporate architectural style, white and slate-gray clean background with subtle cyan and orange energy flow lines.

The vertical flow shows 4 clear stages from top to bottom:

  1. Top section: High-voltage utility grid transmission towers and an outdoor primary substation with large power transformers (66kV to 22kV).

  2. Upper-middle section: Data center indoor electrical room showing medium-voltage switchgear, massive modular UPS units with lithium battery cabinets, and power distribution units (PDU).

  3. Lower-middle section: Server room interior with overhead power busways feeding an ultra-high-density AI server rack, showing the internal power shelf converting AC to 800V DC.

  4. Bottom close-up cutaway: A server compute tray showing intermediate bus converters (IBC), voltage regulator modules (VRM), and glowing microscopic copper pathways leading to a high-end AI GPU processor running at 0.8V.

Ultra-crisp technical details, industrial design rendering, ray tracing, photorealistic textures of brushed aluminum, copper busbars, and electronic components, high-end enterprise consulting slide visual, no distorted text, clean presentation aesthetic.

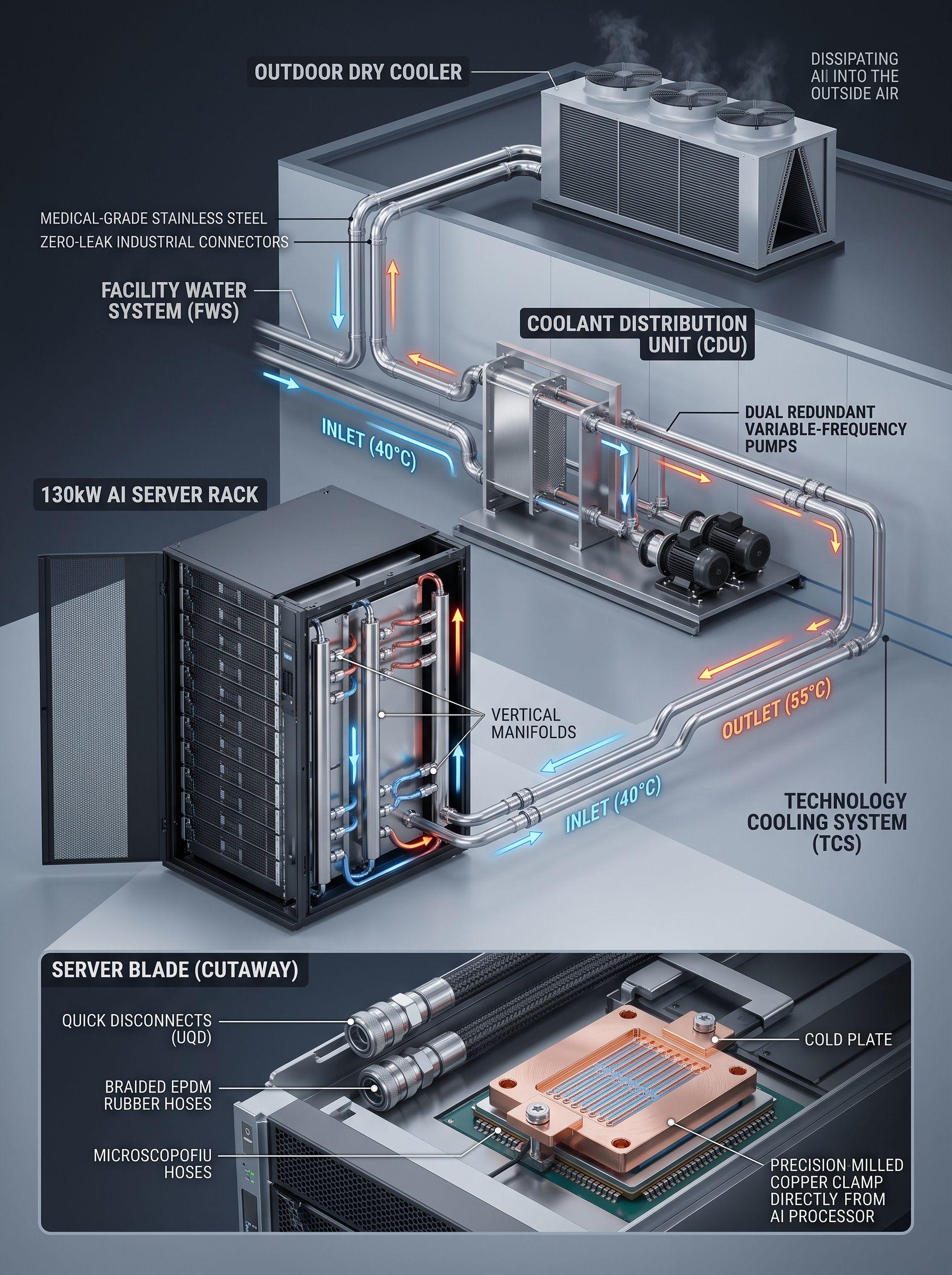

図2:直接液冷(DLC)の「二重循環ループ」とラック内部解剖図

2. 図表の狙いと必要性

第2章の核心である「なぜ従来の空冷では100kW超のラックを冷やせないのか」「直接液冷(DLC)がどのように熱を外部へ運び出しているのか」を解説する図です。施設側冷却水(FWS)とIT機器側循環水(TCS)がCDU(冷却配管分配ユニット)を介して完全に分離されている二重ループ構造と、ラック背面の微細なマニホールド・UQD(クイックディスコネクト)の機械構造を断面図で示すことで、配管施工や水質管理の難所を明確に伝えます。

2. 描画すべき構成要素

  • 左側/外部ループ:屋上のドライクーラー/冷却塔と一次側配管(FWS:施設冷却水ループ)

  • 中央:CDU(熱交換器とインバータポンプが収まるキャビネット)

  • 右側/ラック内部ループ:二次側配管(TCS:医療グレードステンレス配管、垂直マニホールド)

  • ラック断面クローズアップ:各サーバーノードに接続されるUQD(クイックディスコネクト継手)、GPU表面に密着したマイクロチャネル銅製コールドプレート、漏水検知センサーロープ

  • 色分け:低温冷却水(青色ライン)と受熱後の温水(赤/オレンジ色ライン)

Gemini作画用プロンプト(アスペクト比 3:4)

A sophisticated 3D isometric cutaway diagram of a direct-to-chip liquid cooling (DLC) architecture in an AI data center, aspect ratio 3:4, vertical composition. High-tech engineering aesthetic, immaculate cleanroom environment with dark slate and cool gray backdrop.

Key visual elements arranged vertically and logically:

  1. Upper background: Outdoor closed-loop dry cooler on the roof dissipating heat to the outside air, connected by large facility water system (FWS) pipes.

  2. Center: An open-frame Coolant Distribution Unit (CDU) showing a gleaming stainless steel plate heat exchanger and dual redundant variable-frequency pumps.

  3. Foreground main focus: An ultra-dense 130kW AI server rack with its side panel removed. Inside the rack, show vertical stainless steel manifolds with multiple supply and return branches.

  4. Zoomed-in cutaway detail at the bottom: A pulled-out server blade showing blind-mate quick disconnect (UQD) couplings, braided EPDM rubber hoses, and a precision-milled copper cold plate clamped directly onto an AI processor, with visible microscopic liquid flow channels inside the copper.

Cool blue glowing arrows for inlet cold coolant (40°C), warm red/orange arrows for outlet return liquid (55°C). Medical-grade stainless steel pipes, zero-leak industrial connectors, photorealistic rendering, cinematic studio lighting, technical cross-section diagram style.


【プロンプトその3とできあがった画像】

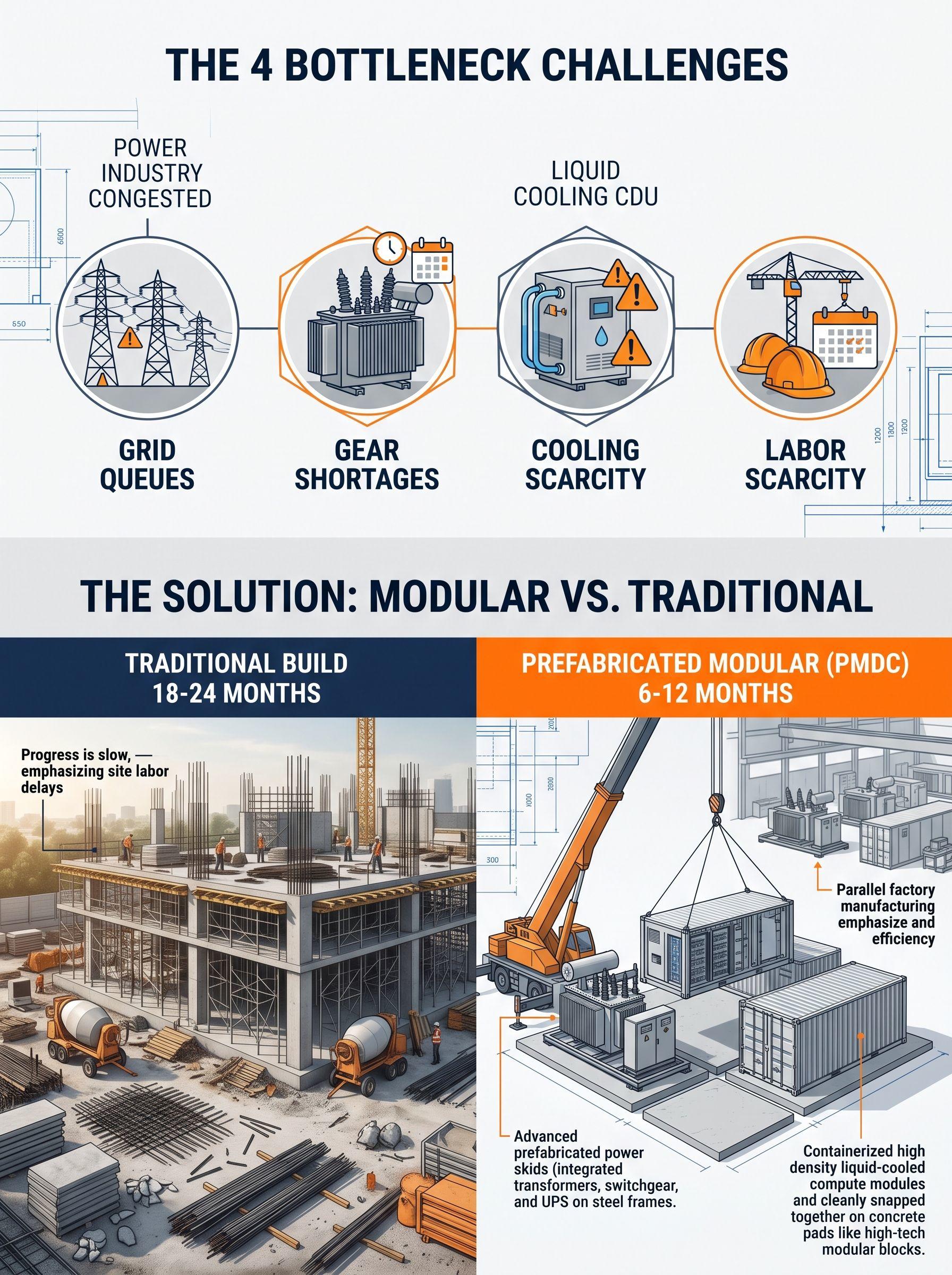

図3:AIファクトリー建設の「4大ボトルネック」とPMDC(モジュール工法)

1. 図表の狙いと必要性

第3章の経営的示唆を凝縮した図です。「系統連系待ち(数年)」「変圧器・開閉装置の長納期化(2〜3年)」「冷却部材の不足」によって従来工法(現場施工型)が座礁している現実と、それを打開する「プレハブ・モジュール型データセンター(PMDC / パワースキッド)」の工期短縮メカニズムを比較提示します。経営企画部が最も関心を持つ「工期(Time-to-Market)」と「資本効率」の劇的な差を一目で理解させることができます。

2. 描画すべき構成要素

  • 上段:AIファクトリー建設を阻む4つの物理的障壁(送電網の順番待ち、重電機器の供給枯渇、冷却部材の加工限界、熟練工不足)のアイコンと連鎖関係

  • 下段(対比構図):

    • 従来工法(Stick-built):18〜24カ月の直列工程、現場での混雑、天候リスク、長期の足場

    • モジュール工法(PMDC):6〜12カ月の並行工程、工場で事前検証(FAT完了)された「パワースキッド」や「液冷コンテナ」が大型クレーンで現場に迅速に据え付けられ、プラグ&プレイで連結される様子

3. Gemini作画用プロンプト(アスペクト比 3:4)

A high-impact executive infographic contrasting traditional data center construction with modern Prefabricated Modular Data Center (PMDC) methods, aspect ratio 3:4, vertical orientation. Clean, minimalist architectural presentation style suitable for corporate boardrooms.

Top section (The 4 Bottlenecks): A modern conceptual diagram illustrating the four critical industry bottlenecks:

  1. Grid interconnection queues (transmission line congestion)

  2. Extreme transformer/switchgear supply delays (heavy electrical gears with calendar delays)

  3. Specialized liquid cooling component shortages (CDU & precision manifolds)

  4. Construction labor shortage and long lead times.

Bottom section (The Solution - Modular Construction vs Traditional): A side-by-side or top-and-bottom comparison:

  • On one side/panel: Traditional concrete build site, slow, chaotic, scaffolding, labeled "Traditional Build: 18-24 Months".

  • On the other side/panel: Advanced prefabricated modular power skids (integrated transformers, switchgear, and UPS on steel frames) and containerized high-density liquid-cooled compute modules being hoisted into place by cranes and cleanly snapped together like high-tech modular blocks, labeled "Prefabricated Modular (PMDC): 6-12 Months".

Crisp engineering blueprint accents, professional corporate palette (navy blue, technical orange, concrete gray, clean white), photorealistic lighting, sharp vector-like clarity and 3D architectural rendering.
